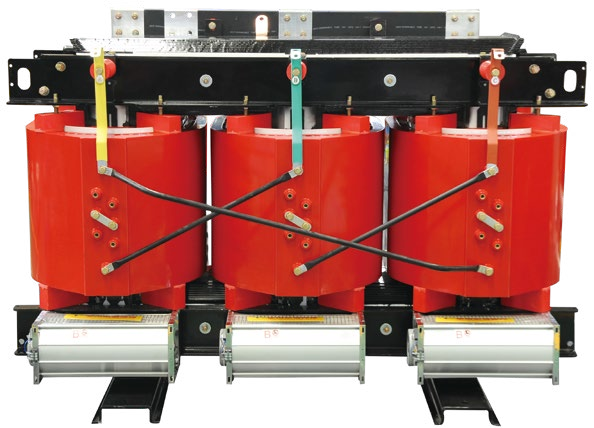

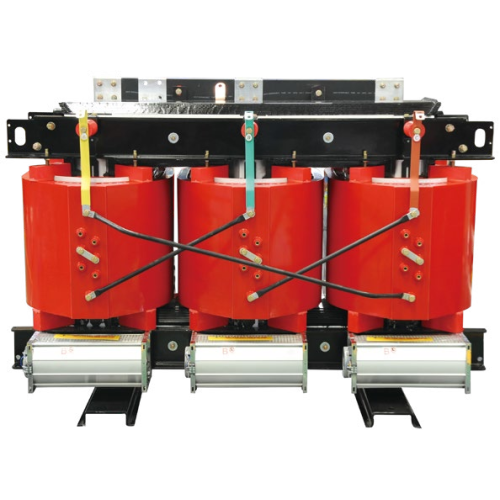

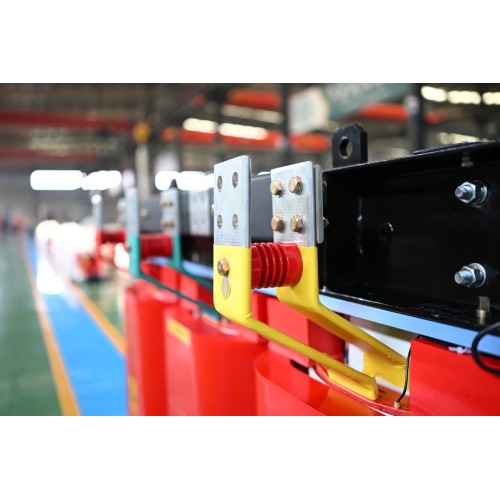

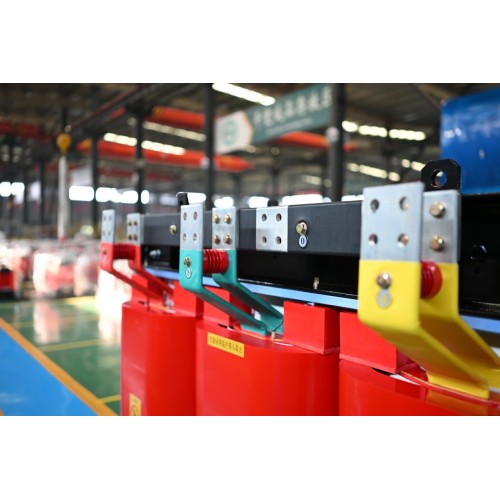

500KVA Dry-Type Distribution Transformer



500KVA Dry-Type Distribution Transformer

Name: Dry-type transformer 250
Uploaded: 2024-12-23T05:43:03+08:00
Description: Jiangsu Xiongfeng Electrical Equipment Co., LTD. mainly produces oil-immersed power transformers,

Get Latest Price

Contact Now

Payment Type: L/C,T/T,D/A
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Transportation: Ocean,Land
Port: SHANGHAI,QINGDAO,LIANYUNGANG

Description

Product Attributes

Model No.: SCB14

Brand: XiongFeng

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Wooden box packaging, container packaging, soft bag and pallet combination
Picture Example:

Supply Ability & Additional Information

Packaging: Wooden box packaging, container packaging, soft bag and pallet combination

Productivity: 10000 units/year

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: Annual output of more than 10,000 transformers

Certificate: ISO9001

Port: SHANGHAI,QINGDAO,LIANYUNGANG

Payment Type: L/C,T/T,D/A

Incoterm: FOB,CIF,EXW

Company Video

Dry-type transformer 250

00:15

Product Description

Jiangsu Xiongfeng Electrical Equipment Co., LTD. mainly produces oil-immersed power transformers, amorphous alloy transformers, epoxy resin cast dry transformers, combined substation and so on.

Basic overview

SCB14-500kVA dry transformer is a new type of high efficiency and energy saving distribution transformer. Among them, "SCB14" indicates that the transformer is a resin-insulated (thin insulation) dry transformer with foil winding, and meets a specific design standard and performance index series, and "500kVA" indicates its rated capacity of 500kVA.

Structural characteristics

1. Insulation system

- Using advanced epoxy resin casting technology, the coil is molded as a whole. This casting process gives the coil extremely high mechanical strength and can effectively resist vibration and shock during transportation and installation. At the same time, the epoxy resin material has good electrical insulation performance, and can also ensure reliable insulation effect in harsh environments such as damp and dust, without the need for a special tank to contain insulation oil like an oil-immersed transformer.

2. Coil structure

- The coil is made of copper foil or copper wire. The copper foil winding method makes the interturn capacitance distribution more uniform, reduces the possibility of partial discharge, and improves the stability of transformer operation. Moreover, the copper has excellent electrical conductivity, which reduces the resistance loss and improves the efficiency of the transformer.

3. Iron core

- The iron core is usually composed of high quality cold rolled silicon steel sheets. These silicon steel sheets undergo special processing, such as reducing thickness, improving permeability, etc., to reduce the no-load loss of the core. There are reasonable insulation and fixing measures between the iron core and the coil to ensure that there will be no loosening, vibration and other conditions affecting the performance of the transformer during long-term operation.
