Non-Exciting Voltage Regulation Distribution Transformer

Name: Dry-type transformer 1600
Uploaded: 2024-12-23T05:41:59+08:00
Description: Jiangsu Xiongfeng Electrical Equipment Co., LTD. mainly produces oil-immersed power transformers, amorphous alloy

Get Latest Price

Contact Now

Payment Type: L/C,T/T,D/A
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Transportation: Ocean,Land
Port: SHANGHAI,QINGDAO,LIANYUNGANG

Description

Product Attributes

Model No.: SC (B) 14

Brand: XiongFeng

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Wooden box packaging, container packaging, soft bag and pallet combination
Picture Example:

Supply Ability & Additional Information

Packaging: Wooden box packaging, container packaging, soft bag and pallet combination

Productivity: 10000 units/year

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: Annual output of more than 10,000 transformers

Certificate: ISO9001

Port: SHANGHAI,QINGDAO,LIANYUNGANG

Payment Type: L/C,T/T,D/A

Incoterm: FOB,CIF,EXW

Company Video

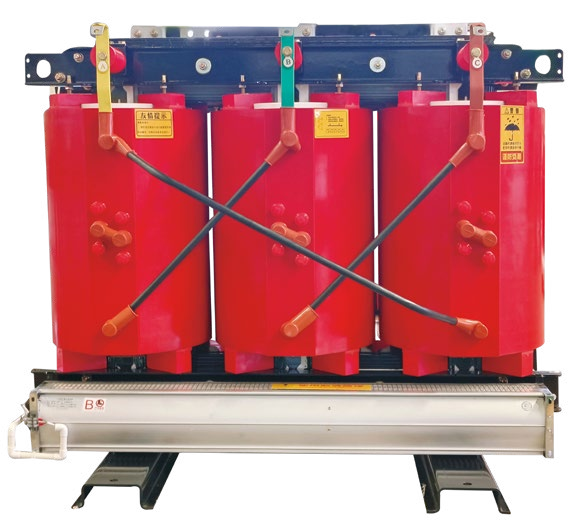

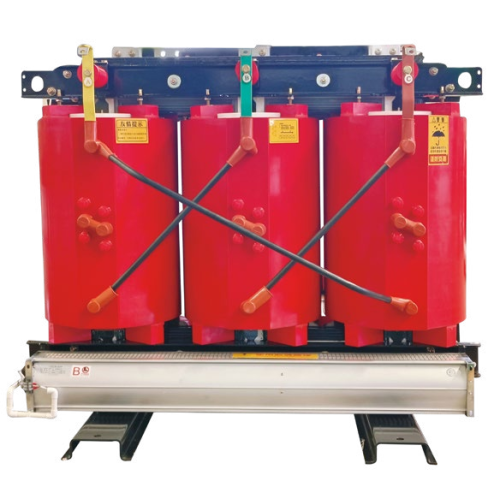

Dry-type transformer 1600

00:25

Product Description

Jiangsu Xiongfeng Electrical Equipment Co., LTD. mainly produces oil-immersed power transformers, amorphous alloy transformers, epoxy resin cast dry transformers, combined substation and so on.

Resin insulated dry-type transformers are advanced technologies introduced by our company from abroad. We have independently developed the SCB14 series dry-type transformers with filler insulation. Due to the coil being encapsulated with epoxy resin, they are difficult to ignite, fireproof, explosion-proof, maintenance free, pollution-free, small in size, and can be directly installed in the load center. At the same time, a scientifically reasonable design and pouring process make the product have smaller partial discharge, lower noise, strong heat dissipation ability, and can operate for a long time under forced air cooling conditions at 125% of the rated load. It is equipped with an intelligent temperature controller, which has fault reporting, over temperature alarm, over temperature trip, and black box functions. It is connected to the computer through RS485 serial interface and can be centrally monitored and controlled.
