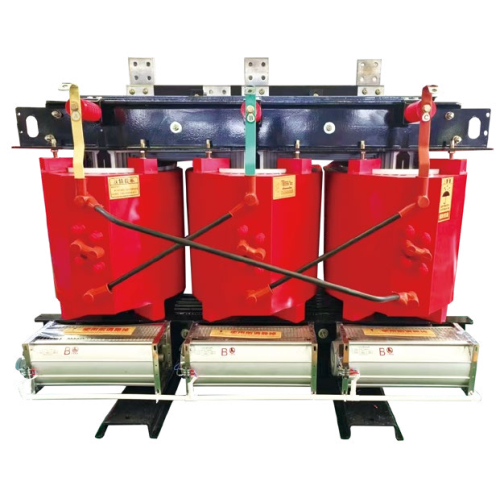

10KV Amorphous Alloy Core Dry Type Transformer

Name: Dry-type electric transformer 250
Uploaded: 2024-12-23T05:42:35+08:00
Description: Jiangsu Xiongfeng Electrical Equipment Co., LTD. mainly produces oil-immersed power transformers, amorphous alloy

Get Latest Price

Contact Now

Payment Type: L/C,T/T,D/A
Incoterm: FOB,CIF,EXW
Transportation: Ocean,Land
Port: SHANGHAI,QINGDAO,LIANYUNGANG

Description

Product Attributes

Model No.: SCB H15

Brand: XiongFeng

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Wooden box packaging, container packaging, soft bag and pallet combination

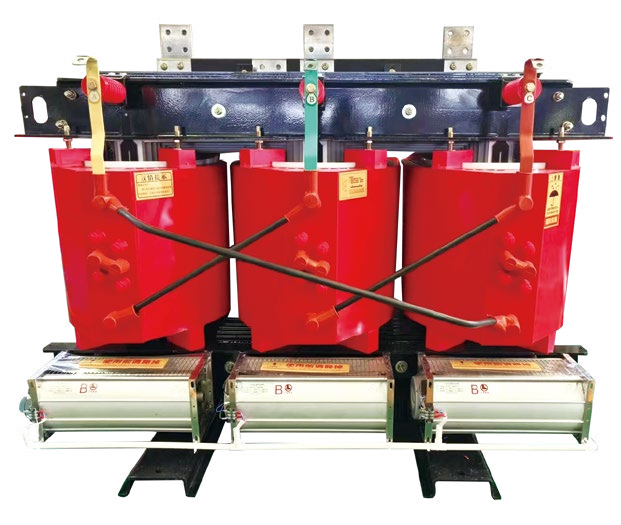

Picture Example:

Supply Ability & Additional Information

Packaging: Wooden box packaging, container packaging, soft bag and pallet combination

Productivity: 10000 units/year

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: Annual output of more than 10,000 transformers

Certificate: ISO9001

Port: SHANGHAI,QINGDAO,LIANYUNGANG

Payment Type: L/C,T/T,D/A

Incoterm: FOB,CIF,EXW

Company Video

Dry-type electric transformer 250

00:06

Product Description

Jiangsu Xiongfeng Electrical Equipment Co., LTD. mainly produces oil-immersed power transformers, amorphous alloy transformers, epoxy resin cast dry transformers, combined substation and so on.

1. Amorphous alloy core

- It is made of amorphous alloy material. Amorphous alloy is a new kind of soft magnetic material with unique atomic arrangement structure. This material has a high permeability, easy magnetization and demagnetization in alternating magnetic fields, and can significantly reduce the no-load loss of transformers. Compared with the traditional silicon steel sheet core, the no-load loss can be reduced by about 70%-80%.

2. Dry design

- A type of dry transformer whose windings are not impregnated in insulating oil, but rely on air cooling. The winding is usually made of high quality copper or aluminum wire and is specially insulated. This dry structure makes the transformer safe and reliable operation, has obvious advantages in fire prevention, explosion prevention and other aspects, and is suitable for installation in densely populated areas, buildings and other places with high safety requirements.

3. Compact structure

- The overall structure layout is compact and reasonable. The connection between the various components is tight, and the space is effectively used, which not only makes the transformer small in size, easy to transport and install, but also helps to improve the efficiency of heat dissipation. For example, by optimizing the relative position between the winding and the iron core, unnecessary heat accumulation points are reduced, ensuring stable operation of the transformer at rated load.
