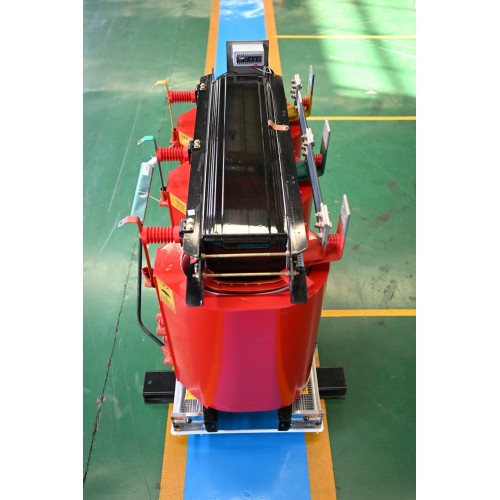

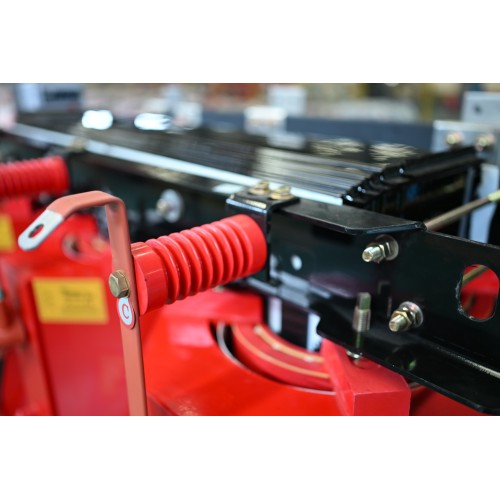

SCB-30kVA Dry Type Transformer

Name: Dry electric transformer 500
Uploaded: 2024-12-23T05:46:08+08:00
Description: Jiangsu Xiongfeng Electrical Equipment Co., LTD. mainly produces oil-immersed power transformers, amorphous alloy

Get Latest Price

Contact Now

Payment Type: L/C,T/T,D/A
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Transportation: Ocean,Land
Port: SHANGHAI,QINGDAO,LIANYUNGANG

Description

Product Attributes

Model No.: SCB-13

Brand: XiongFeng

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Wooden box packaging, container packaging, soft bag and pallet combination
Picture Example:

Supply Ability & Additional Information

Packaging: Wooden box packaging, container packaging, soft bag and pallet combination

Productivity: 10000 units/year

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: Annual output of more than 10,000 transformers

Certificate: ISO9001

Port: SHANGHAI,QINGDAO,LIANYUNGANG

Payment Type: L/C,T/T,D/A

Incoterm: FOB,CIF,EXW

Company Video

Dry electric transformer 500

00:04

Product Description

Jiangsu Xiongfeng Electrical Equipment Co., LTD. mainly produces oil-immersed power transformers, amorphous alloy transformers, epoxy resin cast dry transformers, combined substation and so on.

1. Insulation material and process

- SC(B)13 is cast with epoxy resin technology. Epoxy resin has excellent electrical properties, mechanical properties and chemical corrosion resistance. This casting process makes the winding completely wrapped by epoxy resin, effectively prevent moisture, dust and other impurities into the winding, improve the insulation reliability of the transformer.

2. Core design

- Generally made of high quality cold rolled silicon steel sheet. High-quality silicon steel sheets can reduce iron losses and improve the energy efficiency of transformers. The design of the iron core adopts a reasonable magnetic circuit structure, such as the rolled iron core or the stepped joint iron core, which reduces the flux leakage, reduces the noise level, and reduces the volume and weight of the transformer to a certain extent.

3. Coil winding

- The coil is wound with copper wire, and the number of turns and arrangement are carefully designed according to different voltage levels and capacity requirements. The part of the lead line is specially insulated to ensure safe operation under high voltage.
