SC(B)13 Environmentally Friendly Dry Transformer

Name: Dry-type transformer 500
Uploaded: 2024-12-23T05:46:38+08:00
Description: Jiangsu Xiongfeng Electrical Equipment Co., LTD. mainly produces oil-immersed power transformers,

Get Latest Price

Contact Now

Payment Type: L/C,T/T,D/A
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Transportation: Ocean,Land
Port: SHANGHAI,QINGDAO,LIANYUNGANG

Description

Product Attributes

Model No.: SC(B)13

Brand: XiongFeng

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Wooden box packaging, container packaging, soft bag and pallet combination
Picture Example:

Supply Ability & Additional Information

Packaging: Wooden box packaging, container packaging, soft bag and pallet combination

Productivity: 10000 units/year

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: Annual output of more than 10,000 transformers

Certificate: ISO9001

Port: SHANGHAI,QINGDAO,LIANYUNGANG

Payment Type: L/C,T/T,D/A

Incoterm: FOB,CIF,EXW

Company Video

Dry-type transformer 500

00:03

Product Description

Jiangsu Xiongfeng Electrical Equipment Co., LTD. mainly produces oil-immersed power transformers, amorphous alloy transformers, epoxy resin cast dry transformers, combined substation and so on.

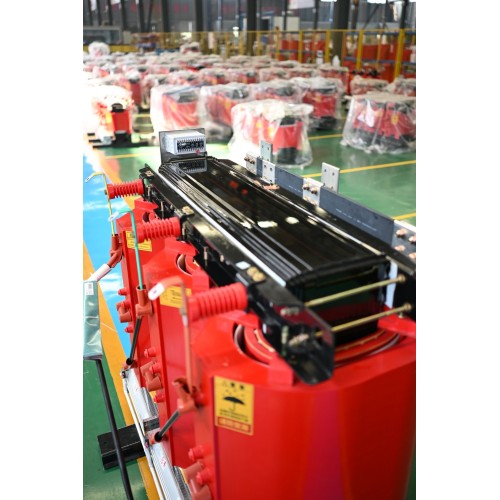

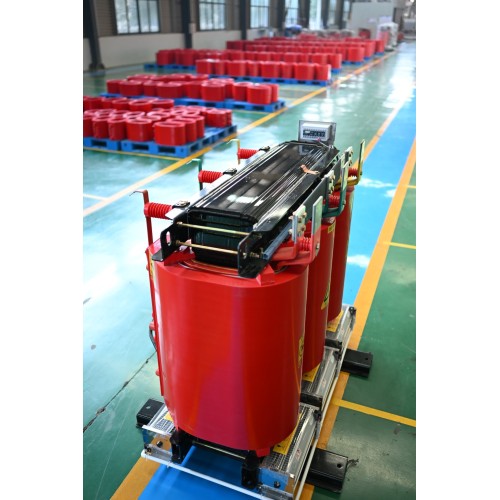

SC(B)13 Type Dry Power Transformer is a new type of distribution equipment with excellent performance. It uses advanced design and manufacturing process, compared with the previous generation of products, in many aspects to achieve optimization and upgrading.

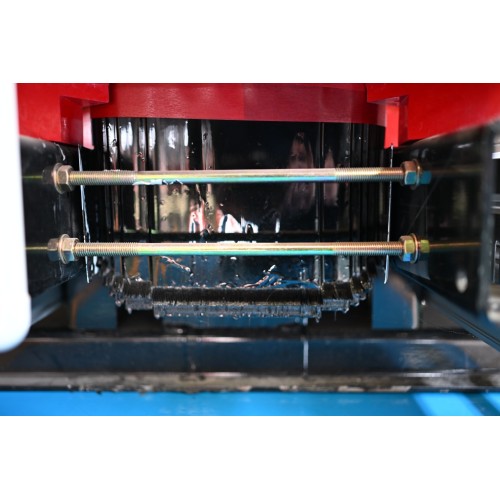

From the structural point of view, the iron core is usually made of high-quality cold-rolled grain-oriented silicon steel sheet, and through special stacking methods and fastening measures, the no-load loss and noise are effectively reduced. The winding is made of copper wire or aluminum wire wound, and the use of reliable insulation materials and insulation structure to ensure stable operation in a variety of harsh environments, with good electrical performance and mechanical strength. This type of dry transformer does not need to use transformer oil as a cooling medium and insulating medium like an oil-immersed transformer, it relies on air self-cooling or forced air cooling to dissipate heat, which makes it extremely excellent in fire prevention, explosion protection and other safety aspects, and is very suitable for use in densely populated areas and indoor places. For example, high-rise buildings, commercial centers, subway stations, airports and other places with high safety and space utilization requirements. Moreover, it has a strong overload capacity, can adapt to the change of different load demands, and also meets the requirements of modern green development in terms of energy saving and consumption reduction, and is one of the important transformer equipment in the power system.
