Three Phase Copper Winding Dry Type Power Transformer

Name: Dry-type transformer 250
Uploaded: 2024-12-23T05:43:03+08:00
Description: Jiangsu Xiongfeng Electrical Equipment Co., LTD. mainly produces oil-immersed power transformers, amorphous alloy

Get Latest Price

Contact Now

Payment Type: L/C,T/T,D/A
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Transportation: Ocean,Land
Port: SHANGHAI,QINGDAO,LIANYUNGANG

Description

Product Attributes

Model No.: SCB18

Brand: XiongFeng

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Wooden box packaging, container packaging, soft bag and pallet combination
Picture Example:

Supply Ability & Additional Information

Packaging: Wooden box packaging, container packaging, soft bag and pallet combination

Productivity: 10000 units/year

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: Annual output of more than 10,000 transformers

Certificate: ISO9001

Port: SHANGHAI,QINGDAO,LIANYUNGANG

Payment Type: L/C,T/T,D/A

Incoterm: FOB,CIF,EXW

Company Video

Dry-type transformer 250

00:15

Product Description

Jiangsu Xiongfeng Electrical Equipment Co., LTD. mainly produces oil-immersed power transformers, amorphous alloy transformers, epoxy resin cast dry transformers, combined substation and so on.

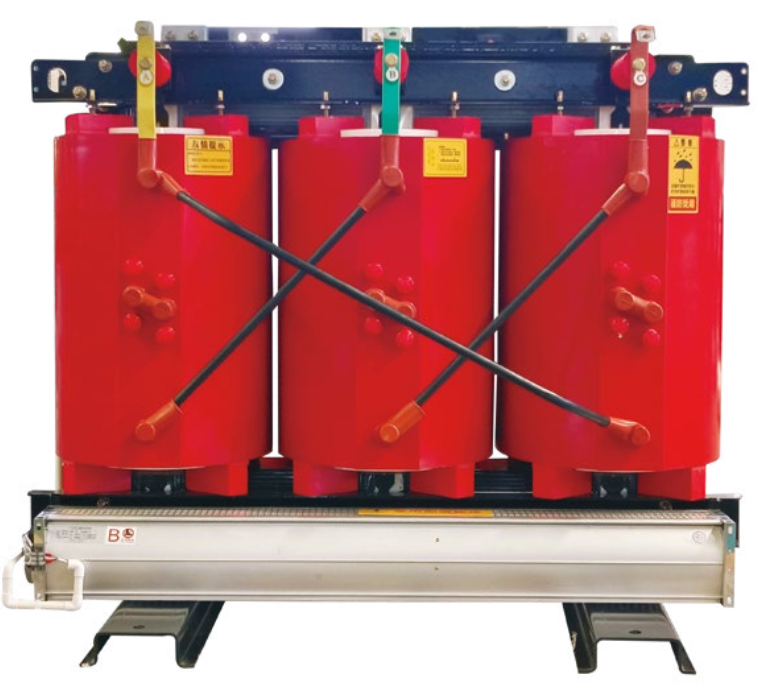

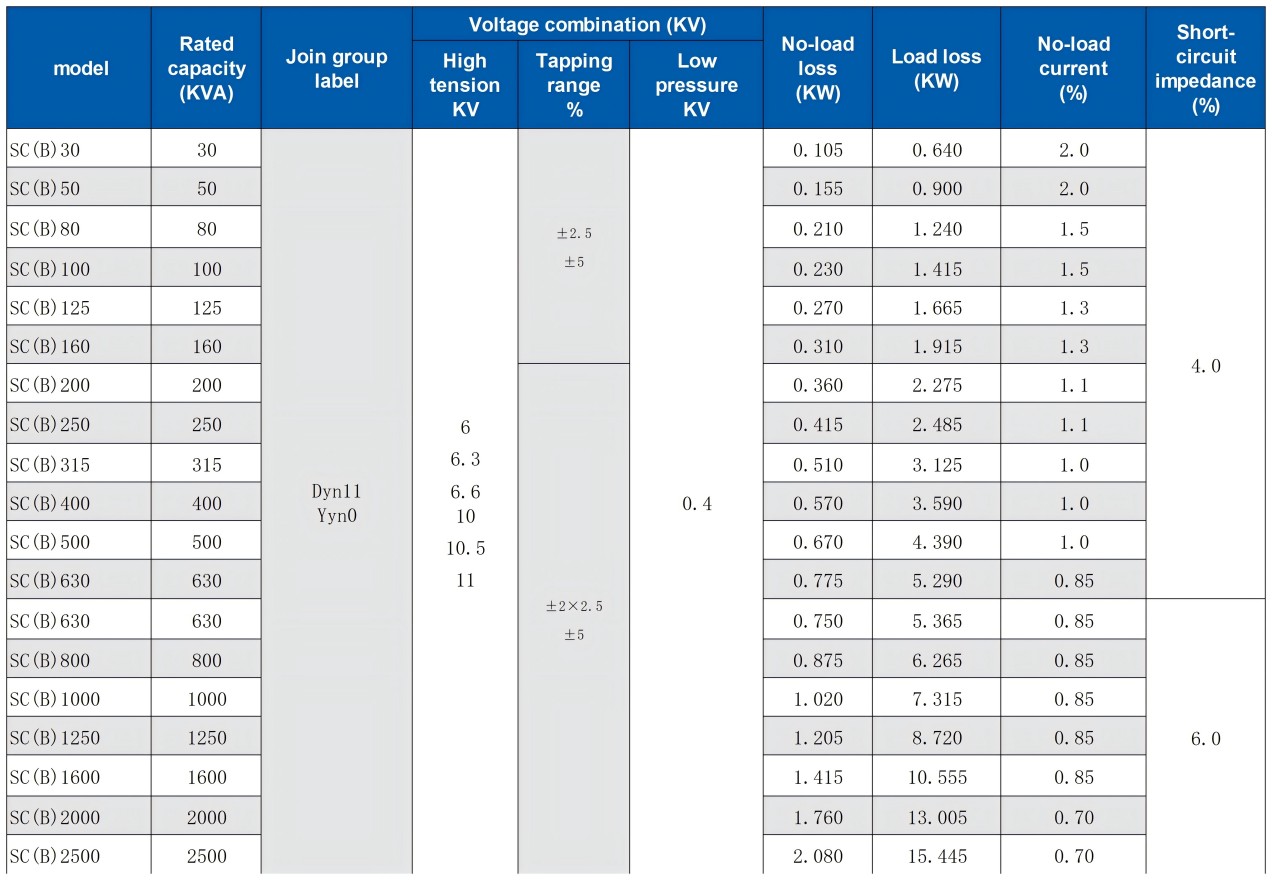

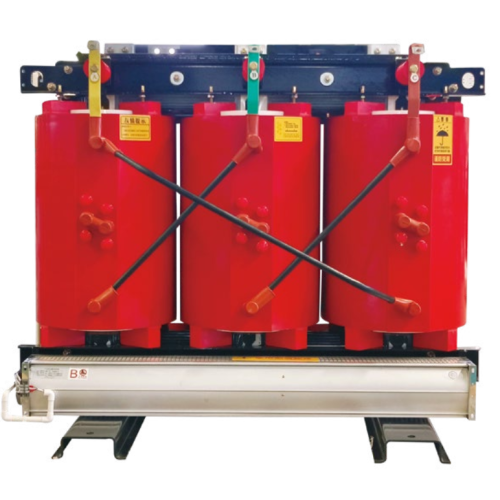

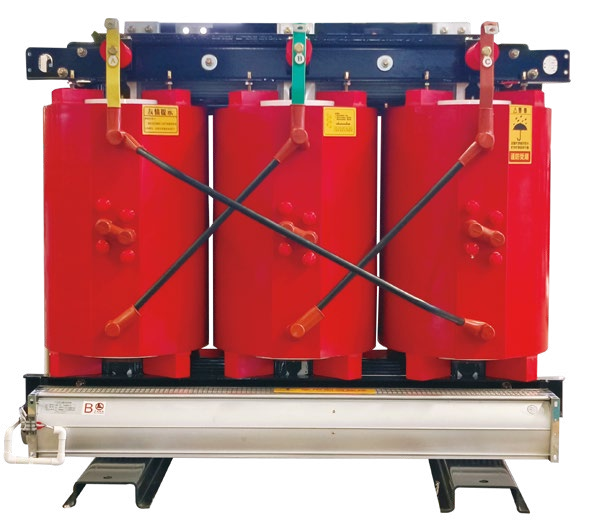

SCB18 transformer is a kind of resin cast dry transformer which is more advanced at present. It has excellent performance in electrical performance, compared with the previous model (such as SCB13, etc.), its no-load loss and load loss are further reduced, which helps to improve energy efficiency, save a lot of power costs in the long-term operation process, and more in line with modern green energy requirements.

Structurally, SCB18 transformers are made of high-quality materials, and the coils are usually wound from copper conductors, with good electrical conductivity and mechanical strength. The iron core is made of cold-rolled silicon steel sheet with high permeability and low loss, which is processed and stacked with special technology to effectively reduce iron loss. In addition, this transformer also has excellent insulation performance, the use of epoxy resin and other insulating materials can withstand high voltage levels, ensuring the safety and stability of equipment operation. At the same time, due to the dry design, there is no need to use insulating oil as the cooling medium like the oil-immersed transformer, which not only avoids the pollution risk caused by oil leakage, but also is easier to maintain, suitable for a variety of places with certain requirements for environmental cleanliness or limited space, such as commercial buildings, subway stations, data centers and other indoor scenes.
