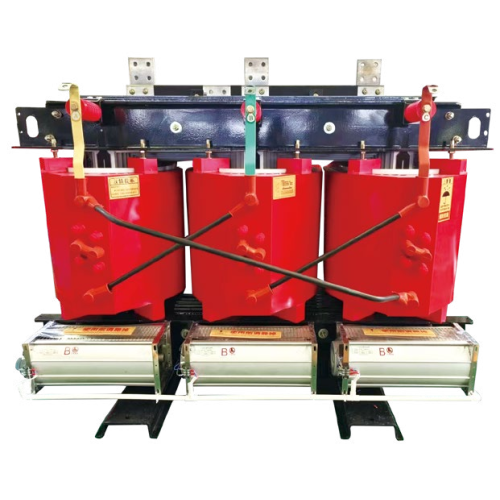

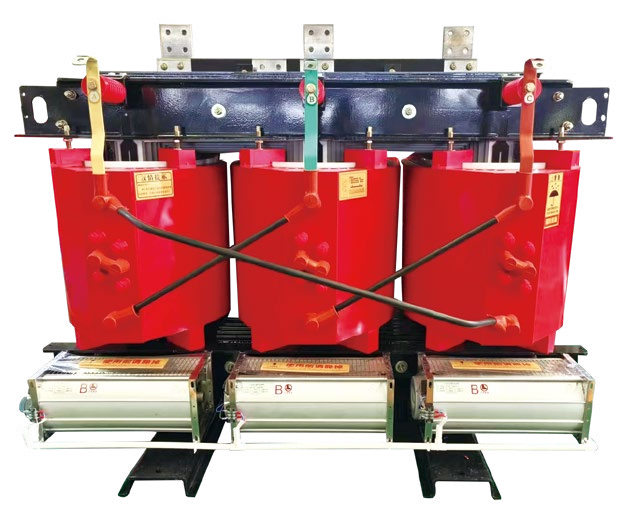

Dry type resin insulated SC(B)10 distribution transformers

Name: Dry-type electric transformer 800
Uploaded: 2024-12-23T05:47:21+08:00
Description: Jiangsu Xiongfeng Electrical Equipment Co., LTD. mainly produces oil-immersed power transformers, amorphous alloy

Get Latest Price

Contact Now

Payment Type: L/C,T/T,D/A
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Transportation: Ocean,Land
Port: SHANGHAI,QINGDAO,LIANYUNGANG

Description

Product Attributes

Model No.: SC(B)10

Brand: XiongFeng

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Wooden box packaging, container packaging, soft bag and pallet combination
Picture Example:

Supply Ability & Additional Information

Packaging: Wooden box packaging, container packaging, soft bag and pallet combination

Productivity: 10000 units/year

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: Annual output of more than 10,000 transformers

Certificate: ISO9001

Port: SHANGHAI,QINGDAO,LIANYUNGANG

Payment Type: L/C,T/T,D/A

Incoterm: FOB,CIF,EXW

Company Video

Dry-type electric transformer 800

00:12

Product Description

Jiangsu Xiongfeng Electrical Equipment Co., LTD. mainly produces oil-immersed power transformers, amorphous alloy transformers, epoxy resin cast dry transformers, combined substation and so on.

This series of products is filled with short glass wire casting coil adopts segmented cylinder type, the coil is provided with axial airway to improve heat dissipation conditions. The scientific casting molding process can ensure that the resin fully penetrates into the turns, layers and segments to ensure the electrical insulation strength of the product and less office discharge (≤5pc).

How to prevent the cracking of the resin castable body, control the generation of residual bubbles in the castable body, and reduce the discharge to the minimum limit has been a major issue for domestic and foreign dry transformer manufacturers, and is the key manufacturing technology of resin castable dry transformer. Through repeated production practice and frequent physical and chemical tests, the company successfully solved this sophisticated problem, so that the company's thin insulated vacuum casting products with short glass wires as fillers, its tensile strength increased to 170N/mm2, bending strength increased to 220N/mm2, from the whole improve the mechanical properties of the resin cured body.

The unique manufacturing technology of the company's SC(B)10 series resin cast thin insulation drying products is the creation of a unique grid

1, the resin thickness of the encapsulation layer is reduced, and the heat dissipation capacity of the coil is enhanced.

2, the coil is reinforced by glass wire felt, which enhances the mechanical strength of the coil, improves the ability of the product to resist sudden short circuit, and successfully solves the problem of cracking of the pouring body.

3, coil using a special process, greatly reduce the local discharge inside the coil, improve the coil electrical strength 4, low-voltage coil using foil structure, reduce the end of the magnetic leakage, improve the product resistance to sudden short circuit.
