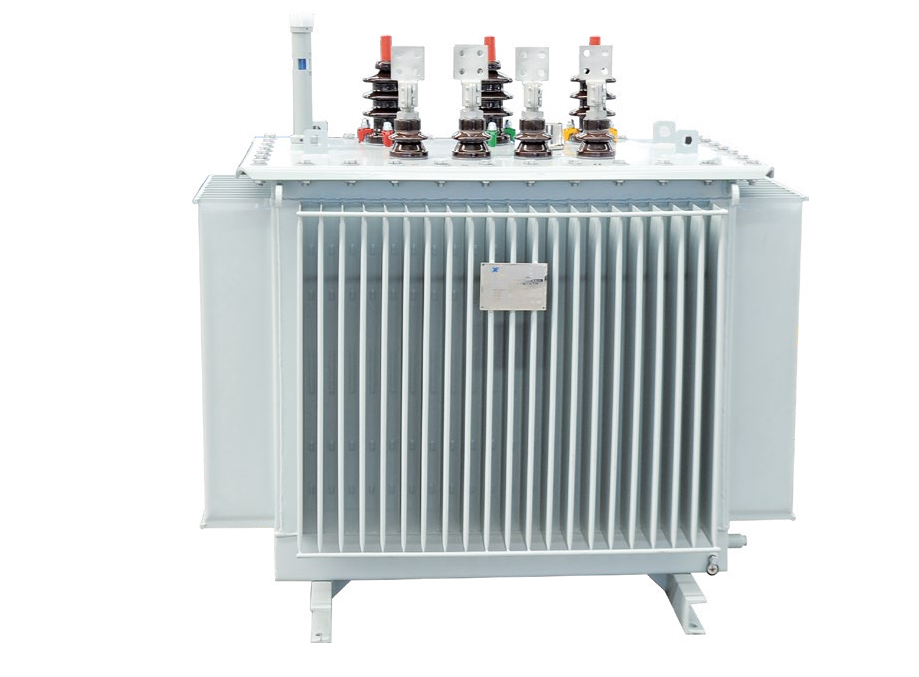

S11-M-80 10KV Oil Immersed Power Transformer

Name: Oil immersible power transformer 1000
Uploaded: 2024-12-23T03:47:28+08:00
Description: Jiangsu Xiongfeng Electrical Equipment Co., LTD. mainly produces oil-immersed power transformers, amorphous alloy

Get Latest Price

Contact Now

Payment Type: L/C,T/T,D/A
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Transportation: Ocean,Land
Port: SHANGHAI,QINGDAO,LIANYUNGANG

Description

Product Attributes

Brand: XiongFeng

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Wooden box packaging, container packaging, soft bag and pallet combination

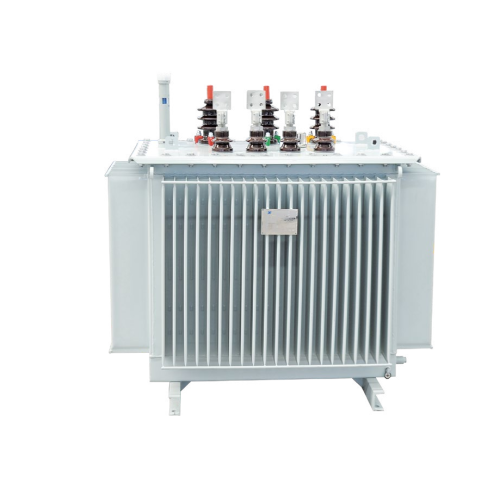

Picture Example:

Supply Ability & Additional Information

Packaging: Wooden box packaging, container packaging, soft bag and pallet combination

Productivity: 10000 units/year

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: Annual output of more than 10,000 transformers

Certificate: ISO9001

Port: SHANGHAI,QINGDAO,LIANYUNGANG

Payment Type: L/C,T/T,D/A

Incoterm: FOB,CIF,EXW

Company Video

Oil immersible power transformer 1000

00:06

Product Description

Jiangsu Xiongfeng Electrical Equipment Co., LTD. mainly produces oil-immersed power transformers, amorphous alloy transformers, epoxy resin cast dry transformers, combined substation and so on.

The transformer core uses imported high-quality cold-rolled silicon steel sheet, which can effectively reduce hysteresis loss and eddy current loss, thereby greatly reducing the no-load loss and no-load current of the transformer. In addition, binding technology ensures a tight fit of the core, helping to further reduce noise due to vibration.

Oxygen free copper wire is used in high and low voltage windings, which can improve electrical conductivity and reduce resistance loss. For transformers with capacity of 500KVA and below, the low-voltage winding adopts the layer cylinder design; Products with a capacity of 630KVA and above may use a double helix or quadruple helix structure, which can better distribute the current density and reduce local overheating. High voltage winding generally adopts multi-layer cylinder structure to adapt to higher voltage levels.

The connection group of the transformer is identified as Dyn11, which helps to reduce third harmonic interference on the grid and improve the quality of the power supply.
